The excavation-based approach that addresses groundwater and hydrostatic pressure at the foundation exterior, not after it has already come inside.
Exterior waterproofing is the most comprehensive approach to eliminating basement moisture because it addresses the problem where it originates: at the exterior face of the foundation wall. Rather than managing water that has already entered the building envelope, this method stops it from reaching the wall surface entirely. The process begins with full excavation around the affected perimeter, which requires removing soil from the foundation level down to the footing to expose the complete wall surface. This depth is critical because partial excavation leaves untreated wall area below grade where hydrostatic pressure and soil moisture continue to act against the foundation.

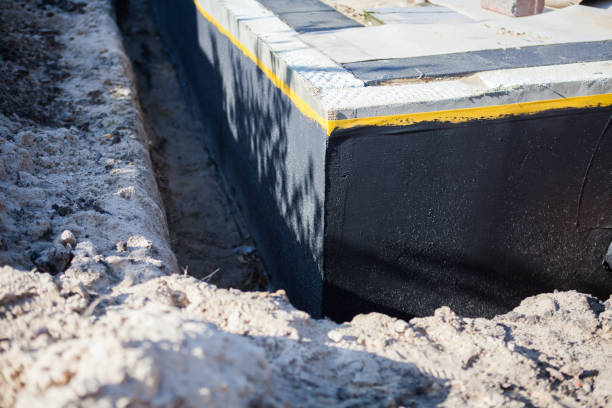

Once the foundation wall is exposed, any existing deteriorated coatings, efflorescence, or cracked parging are removed to create a clean, stable substrate. Cracks in the foundation wall itself are filled and surface-prepped before any waterproofing material is applied. The primary waterproofing layer for most Wheeling applications is a rubberized asphalt membrane applied by roller or spray to the cleaned wall surface. This material bonds directly to masonry or poured concrete, bridging hairline cracks and micro-fissures that would otherwise serve as water entry pathways. The membrane is applied in multiple passes to achieve a specified minimum thickness, and the material's flexibility accommodates the minor seasonal movement that occurs in Wheeling, IL soil conditions without cracking or delaminating.
Drainage board, sometimes called dimple board or dimple mat, is installed over the cured membrane to create a capillary break between the waterproofed wall surface and the surrounding soil. This profiled plastic sheet holds the soil away from the membrane surface and channels any water that migrates through the soil downward to the footing drain rather than allowing it to accumulate against the wall. The dimple profile creates a continuous air gap that eliminates the direct hydraulic contact between saturated soil and the foundation surface. At the base of the excavation, a perforated footing drain pipe is laid in a gravel bed alongside the footing, collects the water directed downward by the drainage board, and conveys it to daylight or to a sump pit inside the structure.
Project timing in Wheeling is an important consideration for exterior waterproofing work. The excavation and membrane application phases require periods of dry weather for proper curing, and frozen ground in winter months affects both excavation feasibility and membrane adhesion. We schedule exterior work in Wheeling, IL during the windows of the year when conditions support proper material performance. However, in cases where active water intrusion is causing immediate damage, we assess whether emergency interim measures can stabilize the situation until exterior work can be performed under appropriate conditions. Homeowners who are concerned about a tight window of opportunity should schedule assessments well in advance of their preferred project timing.
When advising Wheeling homeowners on exterior versus interior approaches, we document specific evidence of water entry mechanism: wall seepage at mid-height indicates hydrostatic pressure against the exterior wall surface, which exterior waterproofing directly resolves. Water entering at the floor-wall joint is typically addressed by interior drainage. Many older Wheeling homes show both conditions simultaneously, and a combined approach treating the exterior walls while installing perimeter interior drainage is sometimes the most comprehensive solution. We explain the evidence and the logic behind every recommendation so homeowners can make informed decisions about their specific structure.
Excavation expertise, proven materials, and a warranty that means something.
Excavation to footing level is non-negotiable for effective exterior waterproofing. We do not offer partial-depth options that leave untreated wall area below grade.
The membrane we specify is rated for continuous soil contact, remains flexible across Wheeling, IL temperature ranges, and bridges existing micro-fissures in the foundation surface.
We stand behind the work we perform in Wheeling with written documentation of what is covered, for how long, and how to make a claim if needed.
Complete exterior foundation protection from excavation through backfill.
Complete excavation, membrane application, drainage board installation, and footing pipe for the full foundation perimeter. The comprehensive solution for persistent moisture intrusion in Wheeling homes.
Learn moreWe document which sections show evidence of active moisture entry and design targeted scopes that address the actual problem areas rather than defaulting to full perimeter work where it is not needed.
Get an assessmentOriginal factory-applied exterior waterproofing coatings on most Wheeling homes from the 1970s through 1990s have reached the end of their effective service life. Re-application restores protection without the cost of a new foundation.
Schedule a reviewInstalling or replacing dimple board and footing drain pipe in conjunction with membrane work ensures water shed by the drainage plane reaches an appropriate outlet rather than pooling near the foundation base.
Learn about drainageBasement window wells in Wheeling homes are a common point of exterior water entry. Proper well drainage, liner installation, and connection to the perimeter footing pipe prevents well overflow from reaching window openings.
Address window wellsProper grading at the completion of backfill is the last line of exterior defense. We verify slope direction and distance from the foundation before leaving every project site.
See full scopeA clear, documented process with no hidden steps.
We evaluate the exterior conditions, identify moisture entry points, and document wall condition to design the right scope for your Wheeling home.
Full excavation to footing depth along affected wall sections exposes the foundation surface for prep and membrane work. All excavated material is staged for controlled backfill.
Each phase is inspected before the next begins to ensure material performance is not compromised by sequencing shortcuts.
Backfill is compacted in lifts to prevent future settlement and voids. Final grade is set to direct surface water away from the foundation at the correct slope.
Real results from real homeowners who chose the permanent solution.
We had tried interior drainage twice over the years and always ended up with some seepage after heavy rain. The exterior excavation and membrane work addressed the actual wall surface and we went through the wettest spring in years without a drop of water in the basement. The crew was professional and cleaned up the yard completely.
The excavation was significant work but the team was organized and efficient. They staged the soil carefully, worked methodically around the foundation, and restored the grade correctly at the end. The detailed written scope before the project started meant I knew exactly what to expect at each stage.
The window well drainage connection they added during the project solved a secondary problem I had been ignoring for years. The well used to fill and drain slowly through the window frame during storms. Connecting it to the perimeter footing pipe eliminated that entirely.
Direct answers about the process, cost, and long-term results.
Exterior waterproofing excavation is the most disruptive type of foundation work performed on a residential property. The extent of disruption depends on what is adjacent to the affected wall sections. Established shrubs, trees, or hardscaping features within the excavation zone will likely need to be temporarily removed or may be permanently affected. We identify and document these impacts during the assessment phase so homeowners can plan for restoration. Lawns adjacent to the excavation typically recover within one to two growing seasons after proper backfill and grading. We do not minimize this aspect of the work, because setting accurate expectations upfront is essential for homeowner satisfaction with the project.
Exterior waterproofing and interior drainage address moisture differently and are not always in direct competition. Exterior treatment prevents water from reaching the wall and basement interior by treating the source. Interior drainage collects water that has already entered the building envelope and removes it via a sump system. For wall seepage caused by hydrostatic pressure and deteriorated exterior waterproofing, the exterior approach is superior because it eliminates the pressure and seals the wall surface. Interior drainage alone leaves the wall wet, which accelerates efflorescence, spalling, and in extreme cases structural deterioration over time. For floor-level water entry due to ground pressure below the footing, interior drainage is the appropriate tool.
{Quality exterior waterproofing using modern rubberized membrane systems can protect a foundation for 20 to 30 or more years when properly installed on a well-prepared surface. The original factory-applied bituminous coatings used on homes built through the 1980s typically had a design life of 10 to 15 years under favorable soil conditions. Modern rubberized membrane materials are substantially more durable, maintain flexibility under soil movement and temperature cycling, and retain adhesion over extended periods. The key variable in longevity is surface preparation quality and membrane thickness applied; underprepared substrates and thin single-pass applications consistently underperform.|Longevity depends on the membrane product specified, surface prep quality, and subsequent drainage board and footing pipe function. When drainage board is properly installed and the footing pipe remains clear and functional, the membrane experiences minimal hydrostatic load because water is redirected before it can accumulate against the wall surface. Regular inspection of the exterior grade around the foundation and the footing drain outlet ensures the drainage system continues to function as designed over the years.}
Winter exterior waterproofing in Wheeling, IL is constrained by frost depth, ground freeze conditions, and membrane cure temperature requirements. Most rubberized membrane products have a minimum application temperature specification, typically around 40 degrees Fahrenheit, and require the substrate to be above that temperature during application and cure. In mid-winter conditions, achieving this without specialized temporary enclosure equipment is not reliable, and we do not schedule exterior membrane application when conditions do not support proper cure. In early winter before frost depth becomes prohibitive, or in late winter during extended mild stretches, work may be feasible depending on specific site conditions.
Resolving persistent basement moisture problems has a positive effect on property value in Wheeling's real estate market. A documented history of active basement water intrusion is a disclosure item that can complicate sales and reduce offers. A properly completed exterior waterproofing project, especially one backed by a written workmanship warranty, addresses that disclosure concern and demonstrates that a long-term solution is in place. The cost of restoration landscaping after the project is typically modest compared to the moisture damage risk eliminated and the buyer confidence created by a warranted waterproofing system.
The return on exterior waterproofing investment in Wheeling comes from several directions: prevention of ongoing moisture damage to structural elements, framing, and finishes; reduction or elimination of mold risk that creates both health and remediation costs; increased usable floor area if the basement was previously unusable due to moisture; and improved marketability and buyer confidence at the time of sale. For older homes where the original factory waterproofing has failed, the cost of continued water damage over time typically exceeds the cost of exterior treatment within several years.
A site assessment costs you nothing and answers the question definitively. Call JCB Waterproofing and Construction to schedule.
Call +1-866-476-1348 for Assessment
